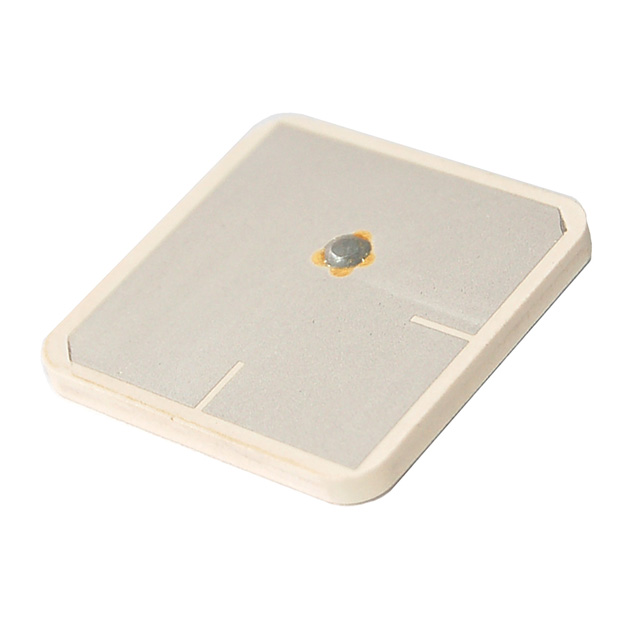

Model No.                             YUE-GPS-D8
Size:                                  35.5X35.5X3mm mm
Center Frequency                 1575.42 MHz±3 MHz
V.S.W.R                                 1.5 : 1
Band Width                           15MHz
Impendence                          50 ohm
Peak Gain:              ＞5dBi Based on 7cmX7cm ground plane
Gain Coverage:       ＞-4dBi at 90deg ＜0＜+90deg (over 75% Volume)
Cable                                    RG174  5m / 3m / or others
Connector                            SMA / SMB / MCX / or others
Working Temp                       -40℃~+85℃
Humidity                                5%~75%RH
Waterproof                            IP67
