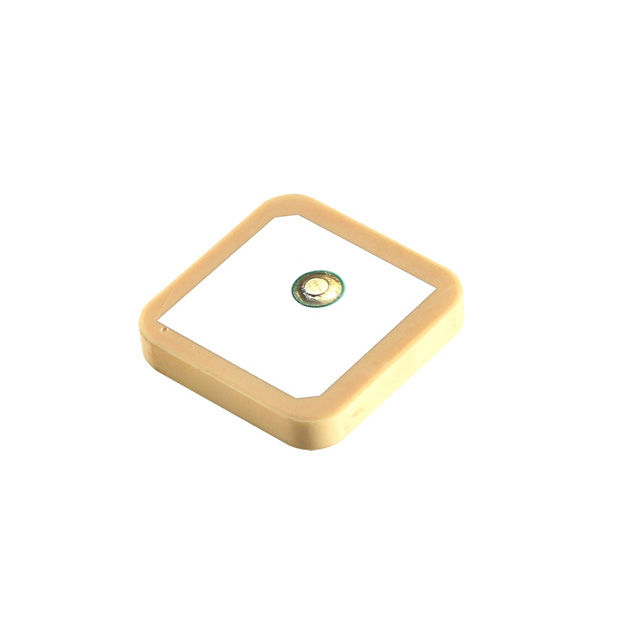

Model No. YUE-GPS/GLONASS-254

（i）Dielectric Antenna
Frequency：1575/1602 MHz
Center Frequency：1590 MHz
VSWR：1.5:1
Bandwidth：15  MHz
Impedance：50  Ω
Peak Gain ＞4dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
Polarization：RHCP
Power Handling：1  W
Weight＜10 g
Size：25×25×4 mm
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+90℃
Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
