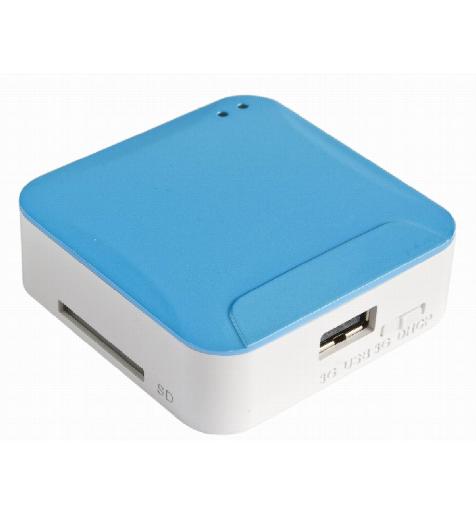

Model No. YUE-RO-01

Standards  IEEE802.3,IEEE802.3U,IEEE802.11b/g/n
Wireless Frequency  2.4G-2.4835GHz
Wireless Speed  Up to 150 Mbps
Security  With 64bit/128-bit WEP and WPA-PSK/WPA2-PSK support
  IP Filtering, Domain Name Filtering, MAC Address Filtering
Interface  1*Micro USB(for DC In)
  1*Ethernet port(Wlan/Lan)
  1*USB 2.0 for connecting 3G USB modem
  1* 3G/WAN switch button
  1*TF card slot
  1*SD Card slot
  1* Reset button
Internet connection  Support 3G, PPPoE(DSL and Cable modem), dynamic IP, static IP broadband access
  Support Auto Dial, on-Demand Dial,Regular Dial requirements
Wireless Security  64-bit/128-bit WEP，WPA-PSK/WPA2-PSK
Device Size  61.5×61.5×21(mm)
Installation Environment  Temp.:0~40oC, humidity:10%~90%RH, non-condensing
Features
● Super portable wireless router, as high as 150Mbps.
● Supports power supply and USB charge.
● Automatic receipt of IP address with DHCP Server.
● Supports Virtual Server, Special Application and DMZ host.
● Provides 64/128-bit WEP encryption security, Supports WPA-PSK/WPA2-PSK.
● Built-in Firewall, DoS protection function, support WEB management.
● Automatic 3G/WAN failover.
● Supports firmware upgrade and remote Web management.
Accessory
1 x wireless router
1 x charger
1 x Qiuck Start Guide
